EMERSON coil ESC 24VAC PCN 801033
Cuộn cảm cho van điện từ
nguồn 24VAC
17VA 50(60)Hz
IP65
ED100%
► Hàng mới 100% - chính hãng - xuất hóa đơn VAT
► Bảo Hành 12 tháng - Hỗ trợ kỹ thuật chu đáo
ssP.A Việt Nam tiên phoVui
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 250 AC / < 300 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...90 | |
|---|---|---|
| Note on ambient temperature |
| |
| Ambient temperature (moving) [°C] | -25...90 | |
| Note on ambient temperature (moving) |
| |
| Storage temperature [°C] | -25...55 | |
| Storage humidity [%] | 10...100 | |
| Other climatic conditions for storage according to stated class |
| |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight [g] | 76.1 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 26.5 x 15.5 x 36.5 | ||||||||
| Moulded-body material | TPU | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Sealing material | FKM | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Notes | Please see the technical note under "Downloads" |
|---|---|
| Pack quantity | 1 pcs. |

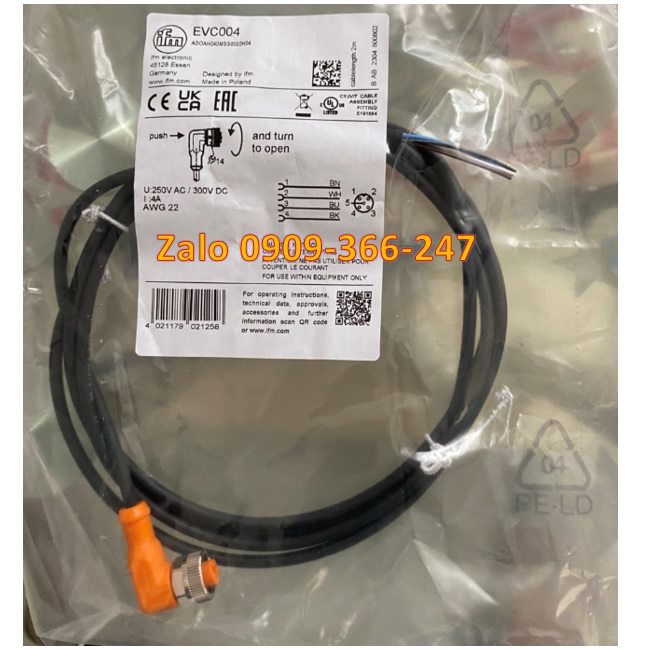

Electrical connection
| Cable: 2 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |

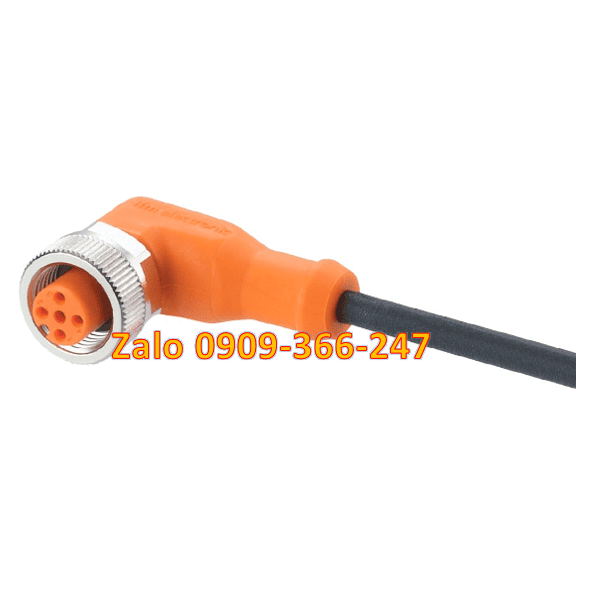

Electrical connection - socket
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|

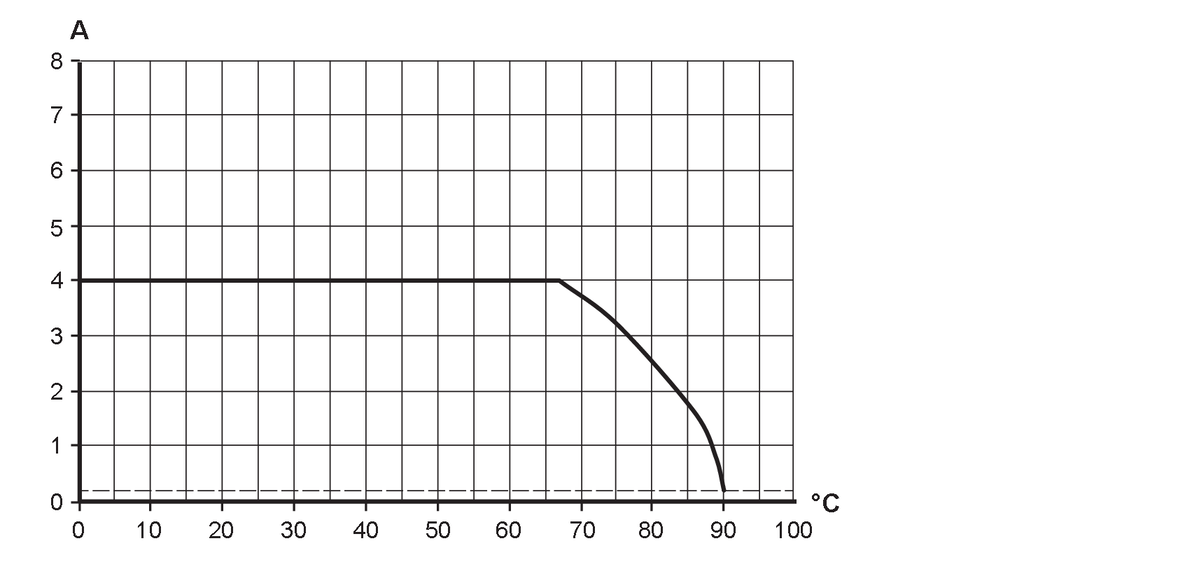

Diagrams and graphs
| characteristic line for derating |
|---|
